Nd YVO4 Laser Crystals

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : CRYLINK

Certification : Iso9001

MOQ : 1 Pieces

Price : negotiation

Packaging Details : Carton

Delivery Time : 3-4 weeks

Payment Terms : TT

Supply Ability : 100 pieces /month

Name : Nd YVO4 Laser Crystals

Concentrations : 0.5%,1.1%, 2.0%.3.0%

Orientation : a-cut (100)

Coatings : HR@1064nm+532nm+HT@808nm/AR@1064nm+532nm

Orientation Tolerence : < 0.5°

Surface Flatness :

Contact Now

Nd YVO4 laser crystals Neodymium doped yttrium vanadate (Nd:YVO4)is the most efficient laser host crystal for diode pumping among the current commercial laser crystals, especially, for low to middle power density. Features: Wide absorption bandwidth Low pump threshold High slope efficiency...

Nd YVO4 laser crystals
Neodymium doped yttrium vanadate (Nd:YVO4)is the most efficient laser host crystal for diode pumping among the current commercial laser crystals, especially, for low to middle power density.

Features:

  1. Wide absorption bandwidth

  2. Low pump threshold

  3. High slope efficiency

  4. Linearly polarized emission and single-mode output


Parameters of Materials

Materials

Nd:YVO4

Concentrations

0.5%,1.1%, 2.0%.3.0%

Orientation

a-cut (100)

Coatings

HR@1064nm+532nm+HT@808nm/AR@1064nm+532nm


Polishing Specification for Laser Grade

Orientation Tolerence

< 0.5°

Thickness/Diameter Tolerance

±0.05mm

Surface Flatness

</8@632nm

Wavefront Distortion

</4@632nm

Surface Quality

10/5

Parallel

30

Perpendicular

15

Clear Aperture

>90%

Chammfer

<0.2×45°



Standard products

Material

Aperture dimensionsmm

length mm

Coatings

Nd(0.5%):YVO4

3x3

4

HR@1064+532+HT@808/ AR@1064+532

6

10

4

AR/AR@1064+808

6

10

Nd(1%):YVO4

3x3

1

HR@1064+532+HT@808/ AR@1064+532

2

3

4

1

AR/AR@1064+808

2

3

4

Nd(2%):YVO4

3x3

1

HR@1064+532+HT@808/ AR@1064+532

2

3

1

AR/AR@1064+808

2

3

Nd(3%):YVO4

3x3

0.5

HR@1064+532+HT@808/ AR@1064+532

1

2

0.5

AR/AR@1064+808

1

2

Product Tags:

nd yag laser rod



laser material

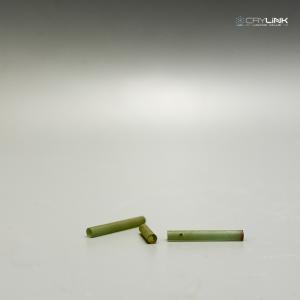

Buy cheap Nd YVO4 Laser Crystals product

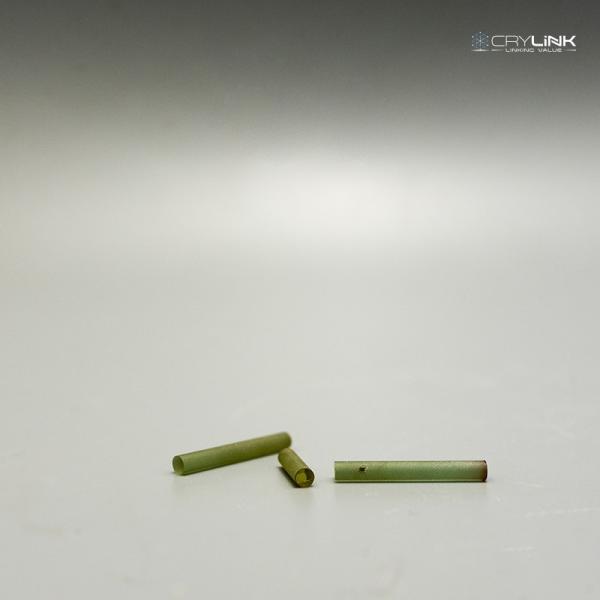

Nd YVO4 Laser Crystals Images
